Monogram Wall Oven Cooks Unevenly: Hot Spots, Pale Sides and Lopsided Bakes

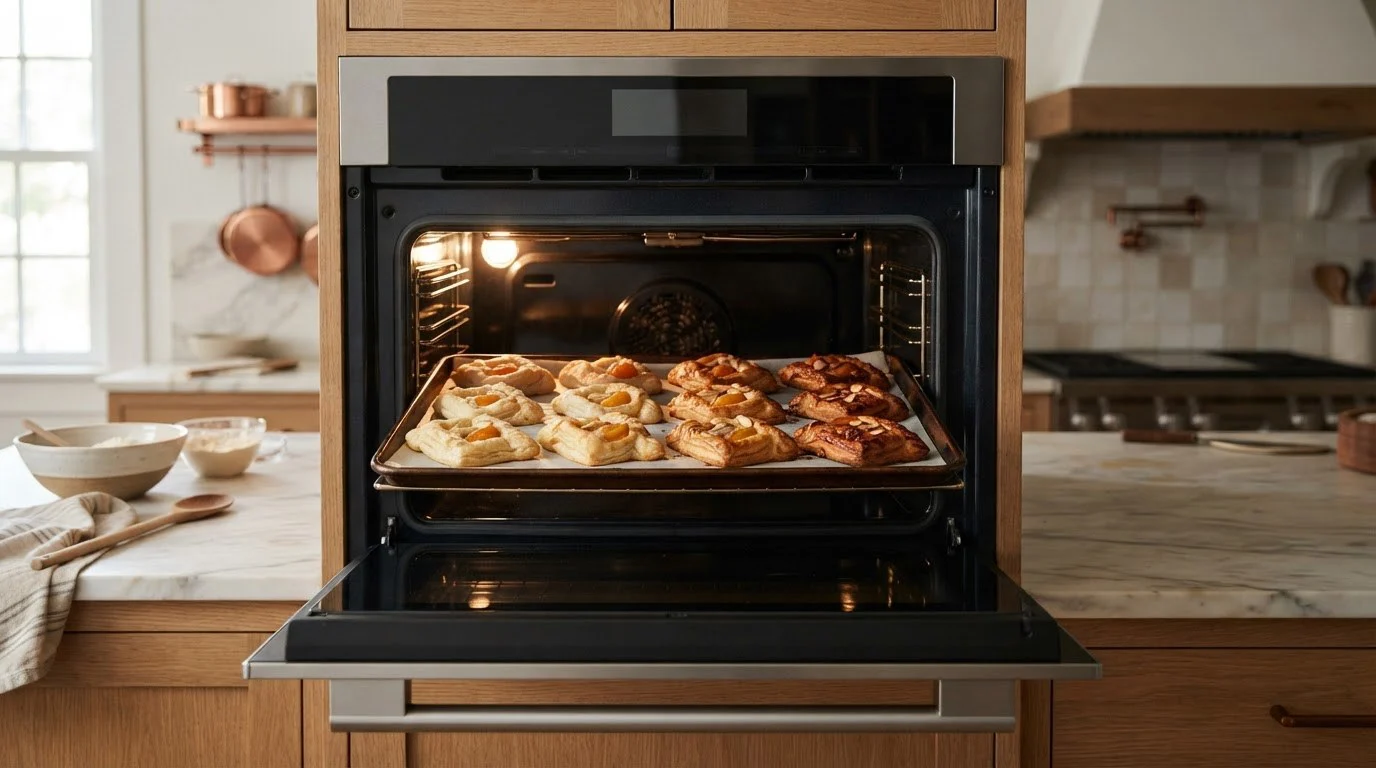

The cookies on the left rack edge are dark, the ones on the right are barely golden, and the roast is cooked well at the back and raw near the door. Uneven results are maddening because the oven still reaches its set point and the display looks normal. The trouble is that a wall oven can be hot on average and still deliver that heat unfairly across the cavity.

First, separate cooking habits from oven faults

Before suspecting a part, rule out the ordinary causes. Dark or heavily used pans absorb heat faster than light ones. A tray that touches the cavity wall blocks airflow on one side. Foil laid across a whole rack, or a baking sheet nearly as wide as the oven, stops heat from circulating. Cooking on several racks at once is a classic reason the top tray browns before the lower one.

Run a simple test. Bake a single even layer, such as a sheet of plain biscuits or slices of bread, on the middle rack with nothing else inside. Rotate nothing. If the bake is lopsided in the same direction every time, the oven is contributing. If the pattern changes, the cause is more likely the way the food was loaded.

What can make the cavity heat unevenly

A convection fan that is slow, noisy or stopped

In convection models, a fan moves hot air so every rack sees similar conditions. If the fan is not turning, the bake looks like an oven without convection: hotter near the elements, cooler farther away. A fan that has become noisy or sluggish gives a more subtle version of the same result.

A heating element that is only partly working

Wall ovens use more than one element, and the bake and broil elements share the work in different modes. If one is weak, glows unevenly or does not glow at all, heat arrives from one side only. A technician checks each element and its connections rather than guessing from the food.

A temperature sensor that misreads

The control cycles elements on and off based on a probe inside the cavity. If the probe reads off, the oven swings wider than it should or settles at a different level than the display says. Food then cooks unevenly in time even if the layout is perfect.

Door gasket or door alignment problems

Heat that escapes around the door makes the front of the cavity cooler than the back. Look for a gasket that is flattened, torn or pulled out of position, or a door that does not sit square when closed. Wall ovens set into cabinetry can be pinched by a surround that has shifted slightly.

Control calibration or a stored fault

Some ovens display an F-code when a fault has been detected. The manual does not define individual F-codes, so the useful step is to write down the exact characters; the Monogram wall oven F-codes page explains how to record them.

Owner checks, in order

1. Empty the oven completely. Remove spare racks, stones, foil and anything stored inside.
2. Check the rack position. Middle is the neutral spot for even baking; top and bottom exaggerate hot zones.
3. Look at the door gasket along the full perimeter and close the door slowly, watching for a gap or a corner that lifts.
4. Turn on convection, if your model has it, and listen at the back of the cavity. You should hear steady air movement rather than silence or a rattle.
5. Run a single bake in the middle and watch the elements through the glass. They should glow across their full length.
6. Write down any code, the mode you used and what you saw in the food.

What not to do

Do not reach into the cavity to feel for the element with the oven hot. Do not remove the back panel or the fan cover. Do not try to recalibrate the oven by guessing at menu settings you cannot reverse; if you change one, record the original value first. Do not run a self-clean cycle as a fix for uneven baking, because the high heat can aggravate a failing part.

When to book

Book a diagnosis when the lopsided bake repeats with a single tray on the middle rack, when a fan has gone silent, when an element does not glow evenly, or when a code appears. Stop using the oven and turn off its breaker if you smell burning, see sparks, or notice the glass or trim discolor near the door.

Models differ in how they cook. A 30-inch unit such as the Monogram ZTD90DSSNSS, an electric wall oven in the Minimalist series, can behave differently from a 27-inch model like the Monogram ZKD90DPSNSS, so the model label on the frame helps us choose parts correctly. If your complaint is time rather than evenness, read about a Monogram oven that preheats slowly.

How the visit works

The technician starts by observing the symptom on a test bake or a controlled heat-up, then checks fan, elements, probe, gasket and door fit in sequence. You receive a written estimate and approve it before any part is ordered or installed. For built-in ovens in San Francisco flats and Bay Area homes, we plan around cabinet access and the need to slide the oven forward.

You can see how we handle these jobs on our Monogram wall oven repair page, or look through the Monogram wall ovens overview to place your oven in the lineup.
